SMD Common Mode Inductors

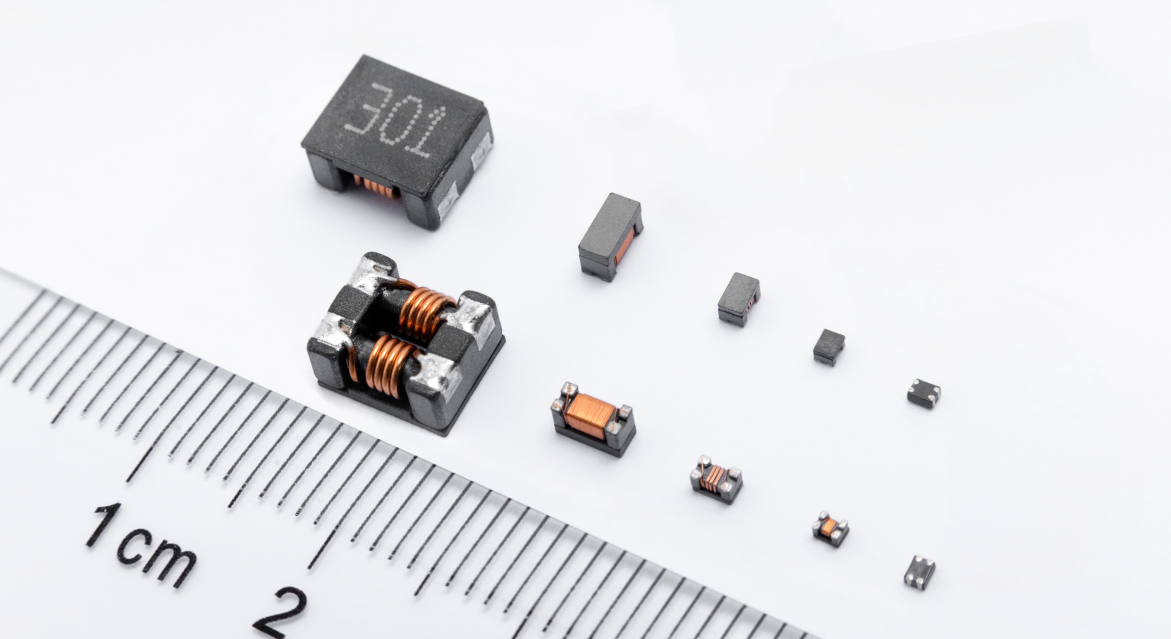

The CS series adopts precision wire‑wound construction with high‑frequency ferrite cores or ceramic bodies. It provides effective common-mode noise suppression in a compact form factor, widely suited for consumer electronics, communication modules and other applications.

Impedance(Ω)	DCR (Ω) (MAX)	Rated current(mA Max)	L×W (Dimensions) (mm)	T (Dimensions) (mm Max)
0 (Min) 8000 (Max)	0.05 (Min) 4.8 (Max)	70 (Min) 2300 (Max)	1.2±0.21.0±0.2 1.6±0.20.8±0.2 2.0±0.21.2±0.2 2.5±0.22.0±0.2 3.2±0.21.6±0.2 3.2±0.22.5±0.2 3.4±0.21.6±0.2 4.5±0.23.2±0.2	0.8±0.1 1.1±0.2 1.2±0.2 1.9±0.2 2.15±0.2 2.2±0.2 2.50 Max 2.8±0.2
